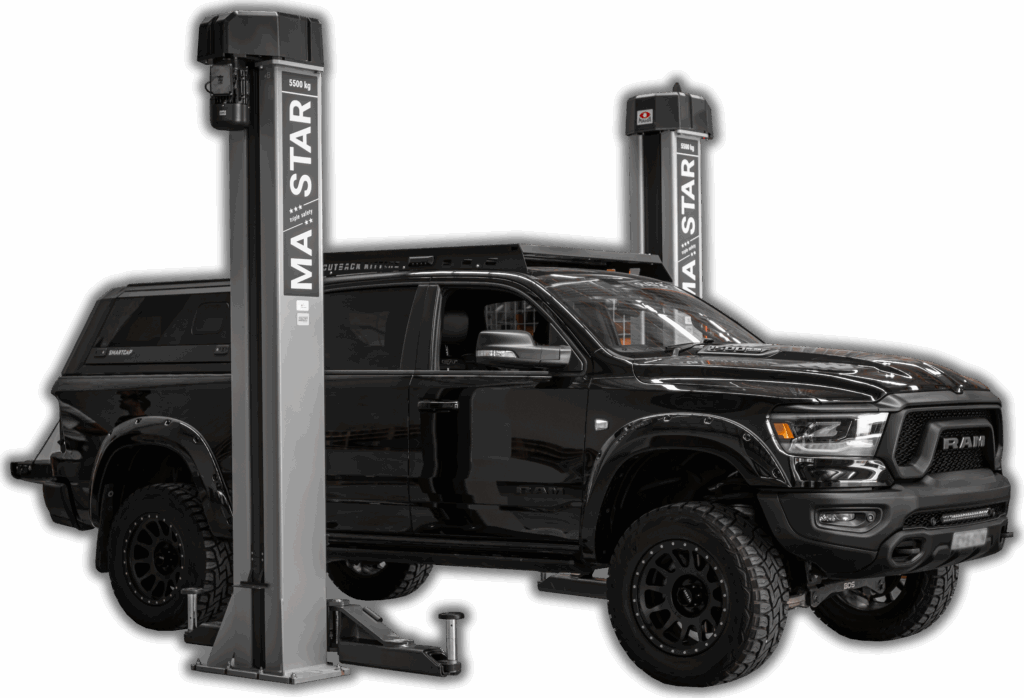

Premium Two Post Lift Master 5500 Kgs
Mastar 5.5 Features
- 5500 kg load capacity
- Triple safety
- Proven spindle-nut system with self-locking thread and 5 years warranty
- Asymmetrical columns turned by 45° for generous door opening angle.
- Asymmetrical support arms
- Symmetrical columns for reduced overall width.
- Short support arms with 180° swivel range.
- Variable installation width
- Paint coating RAL 7040 window grey (columns), RAL 7016 anthracitegrey (support arms)
Technical Data
| Raising / Lowering time (load-dependent) approx. | 40 s / 40 s |
| Load capacity CE | 5500 kg |
| Motor power | 2 x 4,0 kW |
| Fuse gG | C32 A |
| Power supply | 3/N/PE 400 V 60 Hz |
| Net weight without packaging | 1320 kg |
